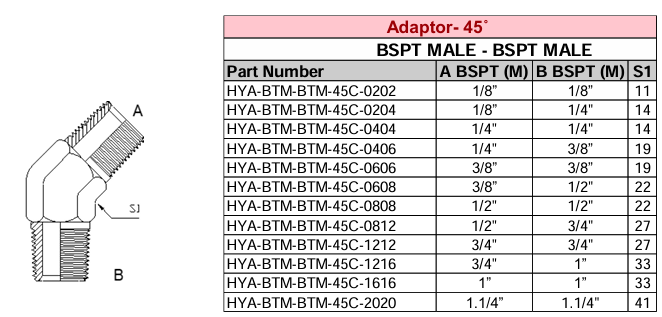

Adaptor - 45° BSPT MALE - BSPT MALE

A 45° Adaptor (BSPT M x BSPT M) is a hydraulic fitting designed to connect two male BSPT (British Standard Pipe Tapered) threads at a 45-degree angle. This type of fitting is ideal for routing fluid lines in tight or angled spaces while maintaining a secure, high-pressure seal.

• Thread Type: BSPT (British Standard Pipe Tapered), conforming to ISO 7-1 / BS 21
• Connection: Male x Male (M x M)
• Angle: 45 degrees
• Seal Type: Tapered thread seal via thread deformation; requires PTFE tape or pipe thread sealant
• Thread Flank Angle: 55°
• Material Options: Carbon steel (zinc-plated), stainless steel, brass
• Pressure Rating: Typically up to 6,000 psi, depending on size and material
• Temperature Range: -40°C to +120°C (standard), higher with stainless steel

Applications:

• Hydraulic and pneumatic systems
• Industrial machinery
• Agricultural and construction equipment
• Marine and offshore systems
