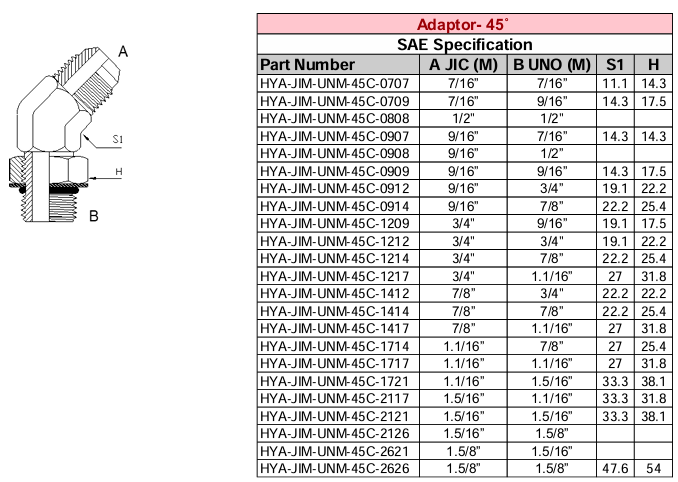

Adaptor - 45° - SAE Specification - JIC M x UNO M

Adaptor - 45° - SAE Specification - JIC M x UNO M

$33.39 AUD
$33.39 AUD
Sale Sold out
Shipping calculated at checkout.

A 45° SAE JIC Male x UNO Male adaptor is a specialized hydraulic fitting used to connect components with JIC (37° flare) and UNO (Unified National O-ring) threads at a 45-degree angle.

  • Standard: SAE J514 (JIC), SAE J1926 (UNO/ORB)
  • Thread Types:
    • JIC Male: 37° flare, UNF thread
    • UNO Male (ORB): Straight thread with O-ring for sealing
  • Bend Angle: 45°
  • Seal Type:
    • JIC: Metal-to-metal seal via 37° flare
    • UNO: O-ring face seal in a machined port
  • Material Options: Carbon steel, stainless steel, brass
  • Pressure Rating: Up to 6,000 PSI depending on size and material

Product features

Materials and care

Merchandising tips

View full details
Variant Variant total Quantity Price Variant total
HYA-JIM-UNM-45C-0707
HYA-JIM-UNM-45C-0707
$33.39/ea		 $0.00
$33.39/ea $0.00
HYA-JIM-UNM-45C-0709
HYA-JIM-UNM-45C-0709
$46.32/ea		 $0.00
$46.32/ea $0.00
HYA-JIM-UNM-45C-0808
HYA-JIM-UNM-45C-0808
$49.74/ea		 $0.00
$49.74/ea $0.00
HYA-JIM-UNM-45C-0907
HYA-JIM-UNM-45C-0907
$47.88/ea		 $0.00
$47.88/ea $0.00
HYA-JIM-UNM-45C-0908
HYA-JIM-UNM-45C-0908
$54.87/ea		 $0.00
$54.87/ea $0.00
HYA-JIM-UNM-45C-0909
HYA-JIM-UNM-45C-0909
$44.04/ea		 $0.00
$44.04/ea $0.00
HYA-JIM-UNM-45C-0912
HYA-JIM-UNM-45C-0912
$55.41/ea		 $0.00
$55.41/ea $0.00
HYA-JIM-UNM-45C-0914
HYA-JIM-UNM-45C-0914
$50.49/ea		 $0.00
$50.49/ea $0.00
HYA-JIM-UNM-45C-1209
HYA-JIM-UNM-45C-1209
$54.09/ea		 $0.00
$54.09/ea $0.00
HYA-JIM-UNM-45C-1212
HYA-JIM-UNM-45C-1212
$50.28/ea		 $0.00
$50.28/ea $0.00
HYA-JIM-UNM-45C-1214
HYA-JIM-UNM-45C-1214
$57.72/ea		 $0.00
$57.72/ea $0.00
HYA-JIM-UNM-45C-1217
HYA-JIM-UNM-45C-1217
$82.83/ea		 $0.00
$82.83/ea $0.00
HYA-JIM-UNM-45C-1412
HYA-JIM-UNM-45C-1412
$61.08/ea		 $0.00
$61.08/ea $0.00
HYA-JIM-UNM-45C-1414
HYA-JIM-UNM-45C-1414
$64.44/ea		 $0.00
$64.44/ea $0.00
HYA-JIM-UNM-45C-1417
HYA-JIM-UNM-45C-1417
$71.22/ea		 $0.00
$71.22/ea $0.00
HYA-JIM-UNM-45C-1714
HYA-JIM-UNM-45C-1714
$76.83/ea		 $0.00
$76.83/ea $0.00
HYA-JIM-UNM-45C-1717
HYA-JIM-UNM-45C-1717
$66.78/ea		 $0.00
$66.78/ea $0.00
HYA-JIM-UNM-45C-1721
HYA-JIM-UNM-45C-1721
$119.55/ea		 $0.00
$119.55/ea $0.00
HYA-JIM-UNM-45C-2117
HYA-JIM-UNM-45C-2117
$122.49/ea		 $0.00
$122.49/ea $0.00
HYA-JIM-UNM-45C-2121
HYA-JIM-UNM-45C-2121
$110.79/ea		 $0.00
$110.79/ea $0.00
HYA-JIM-UNM-45C-2126
HYA-JIM-UNM-45C-2126
$193.11/ea		 $0.00
$193.11/ea $0.00
HYA-JIM-UNM-45C-2621
HYA-JIM-UNM-45C-2621
$202.17/ea		 $0.00
$202.17/ea $0.00
HYA-JIM-UNM-45C-2626
HYA-JIM-UNM-45C-2626
$179.82/ea		 $0.00
$179.82/ea $0.00
