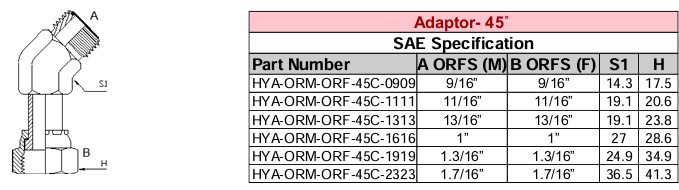

Adaptor - 45° - SAE Specification - ORFS M x ORFS F

A 45° SAE ORFS Male x ORFS Female adaptor is a hydraulic fitting designed to connect two O-Ring Face Seal (ORFS) components at a 45-degree angle.

• Standard: SAE J1453
• Connection Type:
  • Male End: ORFS (O-Ring Face Seal) with straight thread and O-ring groove
  • Female End: ORFS swivel with flat face for O-ring compression
• Bend Angle: 45°
• Seal Type: Elastomeric O-ring compressed between flat faces
• Thread Type: Straight thread (UN/UNF)
• Material Options: Carbon steel (zinc-plated), stainless steel, brass
• O-Ring Material: Buna-N (NBR) or Viton (FKM)
• Pressure Rating: Up to 6,000 PSI depending on size and material
• Sizes Available: From 1/4" to 1-1/2"
• Leak-Free Seal: Ideal for high-pressure hydraulic systems
• Swivel Female End: Allows for easier installation and alignment
• Corrosion Resistance: Often zinc-plated or stainless steel for durability
• Applications: Mobile equipment, industrial hydraulics, fluid power systems
