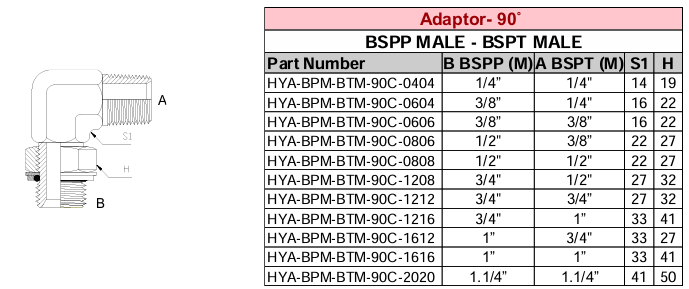

Adaptor - 90° - BSPP MALE x BSPT MALE

Adaptor - 90° - BSPP MALE x BSPT MALE

$47.73 AUD
$47.73 AUD
Sale Sold out
Shipping calculated at checkout.

A 90° BSPP Male x BSPT Male adaptor is a hydraulic fitting used to connect a parallel-threaded BSPP (British Standard Pipe Parallel) male end to a tapered-threaded BSPT (British Standard Pipe Tapered) male end at a right angle.

  • Thread Standards:
    • BSPP (G-thread): Parallel thread, typically sealed with a bonded washer or O-ring.
    • BSPT (R-thread): Tapered thread, seals via thread deformation (metal-to-metal).
  • Bend Angle: 90°
  • Seal Type:
    • BSPP: O-ring or bonded seal
    • BSPT: Thread sealant or PTFE tape
  • Material: Commonly 316L stainless steel for corrosion resistance
  • Pressure Rating: Varies by size and material, typically up to 6,000 PSI
  • Sizes Available: 1/4", 3/8", 1/2", 3/4", 1", etc.

Product features

Materials and care

Merchandising tips

View full details
Variant Variant total Quantity Price Variant total
HYA-BPM-BTM-90C-0404
HYA-BPM-BTM-90C-0404
$47.73/ea		 $0.00
$47.73/ea $0.00
HYA-BPM-BTM-90C-0604
HYA-BPM-BTM-90C-0604
$48.45/ea		 $0.00
$48.45/ea $0.00
HYA-BPM-BTM-90C-0606
HYA-BPM-BTM-90C-0606
$45.21/ea		 $0.00
$45.21/ea $0.00
HYA-BPM-BTM-90C-0806
HYA-BPM-BTM-90C-0806
$66.00/ea		 $0.00
$66.00/ea $0.00
HYA-BPM-BTM-90C-0808
HYA-BPM-BTM-90C-0808
$63.06/ea		 $0.00
$63.06/ea $0.00
HYA-BPM-BTM-90C-1208
HYA-BPM-BTM-90C-1208
$85.41/ea		 $0.00
$85.41/ea $0.00
HYA-BPM-BTM-90C-1212
HYA-BPM-BTM-90C-1212
$77.43/ea		 $0.00
$77.43/ea $0.00
HYA-BPM-BTM-90C-1216
HYA-BPM-BTM-90C-1216
$79.41/ea		 $0.00
$79.41/ea $0.00
HYA-BPM-BTM-90C-1612
HYA-BPM-BTM-90C-1612
$167.01/ea		 $0.00
$167.01/ea $0.00
HYA-BPM-BTM-90C-1616
HYA-BPM-BTM-90C-1616
$152.79/ea		 $0.00
$152.79/ea $0.00
HYA-BPM-BTM-90C-2020
HYA-BPM-BTM-90C-2020
$100.80/ea		 $0.00
$100.80/ea $0.00
HYA-BPM-BTM-90C-2424
HYA-BPM-BTM-90C-2424
$127.32/ea		 $0.00
$127.32/ea $0.00
