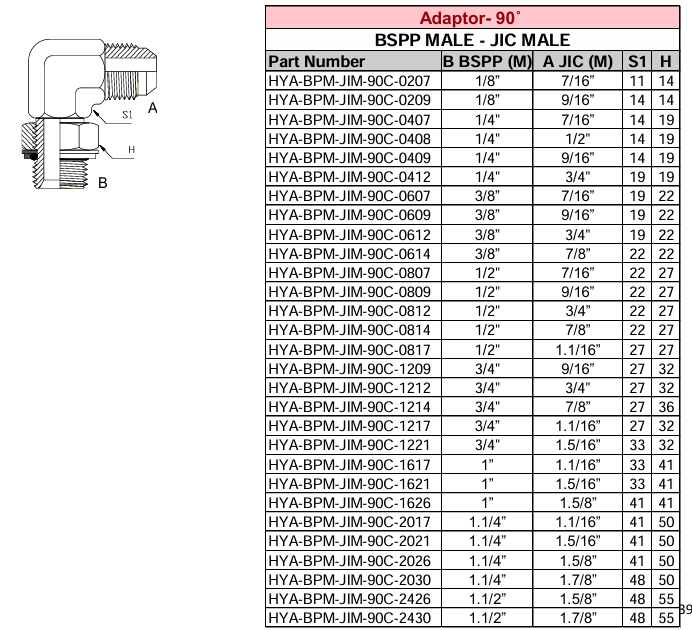

Adaptor - 90° - BSPP MALE x JIC MALE

Adaptor - 90° - BSPP MALE x JIC MALE

$39.93 AUD
$39.93 AUD
Sale Sold out
Shipping calculated at checkout.

A 90° BSPP Male x JIC Male adaptor is a hydraulic fitting designed to connect a British Standard Pipe Parallel (BSPP) male thread to a Joint Industry Council (JIC) male thread at a right angle.

  • Thread Standards:
    • BSPP Male: Parallel thread (ISO 228), typically sealed with a bonded washer or O-ring.
    • JIC Male: 37° flare (SAE J514), sealed via metal-to-metal contact.
  • Bend Angle: 90°
  • Seal Types:
    • BSPP: Bonded seal (O-ring + washer)
    • JIC: 37° flare metal-to-metal seal
  • Material: Commonly 316L stainless steel or carbon steel
  • Pressure Rating: Up to 6,000 PSI depending on size and material
  • Sizes Available: From 1/4" to 1-1/2"

Product features

Materials and care

Merchandising tips

View full details
Variant Variant total Quantity Price Variant total
HYA-BPM-JIM-90C-0207
HYA-BPM-JIM-90C-0207
$39.93/ea		 $0.00
$39.93/ea $0.00
HYA-BPM-JIM-90C-0209
HYA-BPM-JIM-90C-0209
$48.15/ea		 $0.00
$48.15/ea $0.00
HYA-BPM-JIM-90C-0407
HYA-BPM-JIM-90C-0407
$33.93/ea		 $0.00
$33.93/ea $0.00
HYA-BPM-JIM-90C-0408
HYA-BPM-JIM-90C-0408
$48.96/ea		 $0.00
$48.96/ea $0.00
HYA-BPM-JIM-90C-0409
HYA-BPM-JIM-90C-0409
$38.01/ea		 $0.00
$38.01/ea $0.00
HYA-BPM-JIM-90C-0412
HYA-BPM-JIM-90C-0412
$41.16/ea		 $0.00
$41.16/ea $0.00
HYA-BPM-JIM-90C-0607
HYA-BPM-JIM-90C-0607
$40.11/ea		 $0.00
$40.11/ea $0.00
HYA-BPM-JIM-90C-0609
HYA-BPM-JIM-90C-0609
$38.58/ea		 $0.00
$38.58/ea $0.00
HYA-BPM-JIM-90C-0612
HYA-BPM-JIM-90C-0612
$39.09/ea		 $0.00
$39.09/ea $0.00
HYA-BPM-JIM-90C-0614
HYA-BPM-JIM-90C-0614
$48.66/ea		 $0.00
$48.66/ea $0.00
HYA-BPM-JIM-90C-0807
HYA-BPM-JIM-90C-0807
$90.57/ea		 $0.00
$90.57/ea $0.00
HYA-BPM-JIM-90C-0809
HYA-BPM-JIM-90C-0809
$49.86/ea		 $0.00
$49.86/ea $0.00
HYA-BPM-JIM-90C-0812
HYA-BPM-JIM-90C-0812
$46.02/ea		 $0.00
$46.02/ea $0.00
HYA-BPM-JIM-90C-0814
HYA-BPM-JIM-90C-0814
$51.27/ea		 $0.00
$51.27/ea $0.00
HYA-BPM-JIM-90C-0817
HYA-BPM-JIM-90C-0817
$98.67/ea		 $0.00
$98.67/ea $0.00
HYA-BPM-JIM-90C-1209
HYA-BPM-JIM-90C-1209
$75.57/ea		 $0.00
$75.57/ea $0.00
HYA-BPM-JIM-90C-1212
HYA-BPM-JIM-90C-1212
$66.00/ea		 $0.00
$66.00/ea $0.00
HYA-BPM-JIM-90C-1214
HYA-BPM-JIM-90C-1214
$64.98/ea		 $0.00
$64.98/ea $0.00
HYA-BPM-JIM-90C-1217
HYA-BPM-JIM-90C-1217
$61.83/ea		 $0.00
$61.83/ea $0.00
HYA-BPM-JIM-90C-1221
HYA-BPM-JIM-90C-1221
$88.74/ea		 $0.00
$88.74/ea $0.00
HYA-BPM-JIM-90C-1617
HYA-BPM-JIM-90C-1617
$99.63/ea		 $0.00
$99.63/ea $0.00
HYA-BPM-JIM-90C-1621
HYA-BPM-JIM-90C-1621
$98.79/ea		 $0.00
$98.79/ea $0.00
HYA-BPM-JIM-90C-1626
HYA-BPM-JIM-90C-1626
$212.31/ea		 $0.00
$212.31/ea $0.00
HYA-BPM-JIM-90C-2017
HYA-BPM-JIM-90C-2017
$187.74/ea		 $0.00
$187.74/ea $0.00
HYA-BPM-JIM-90C-2021
HYA-BPM-JIM-90C-2021
$173.19/ea		 $0.00
$173.19/ea $0.00
HYA-BPM-JIM-90C-2026
HYA-BPM-JIM-90C-2026
$147.27/ea		 $0.00
$147.27/ea $0.00
HYA-BPM-JIM-90C-2030
HYA-BPM-JIM-90C-2030
$238.17/ea		 $0.00
$238.17/ea $0.00
HYA-BPM-JIM-90C-2426
HYA-BPM-JIM-90C-2426
$271.83/ea		 $0.00
$271.83/ea $0.00
HYA-BPM-JIM-90C-2430
HYA-BPM-JIM-90C-2430
$279.60/ea		 $0.00
$279.60/ea $0.00
