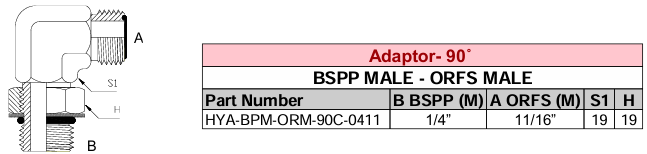

Adaptor - 90° - BSPP MALE x ORFS MALE

A 90° BSPP Male x ORFS Male adaptor is a hydraulic fitting designed to connect a British Standard Pipe Parallel (BSPP) male thread to an O-Ring Face Seal (ORFS) male thread at a right angle. Here's a detailed breakdown:

Technical Specifications

• Thread Standards:
  • BSPP Male: Parallel thread (ISO 228), typically sealed with a bonded washer or O-ring.
  • ORFS Male: Straight thread with a flat face and O-ring groove (SAE J1453).
• Bend Angle: 90°
• Seal Types:
  • BSPP: Seals with a bonded washer against a flat face.
  • ORFS: Seals via elastomeric O-ring compressed against a flat face.
• Material: Commonly carbon steel (zinc-plated), stainless steel, or brass.
• Pressure Rating: Up to 6,000 PSI depending on size and material.
• Sizes Available: Typically from 1/4" to 1-1/2".
