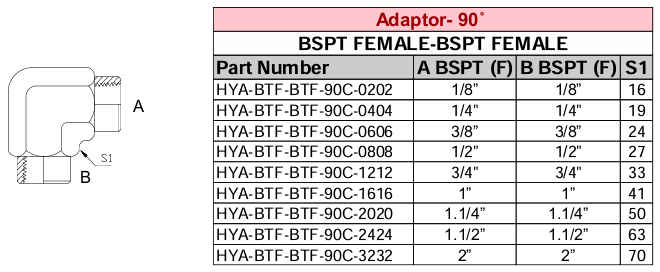

Adaptor - 90° - BSPT FEMALE x BSPT FEMALE

A 90° BSPT Female x BSPT Female adaptor is a hydraulic fitting used to connect two British Standard Pipe Tapered (BSPT) female-threaded components at a right angle. Here's a detailed overview:

Technical Specifications

• Thread Type: BSPT (British Standard Pipe Tapered)
  • Tapered thread with a 55° flank angle
  • Seals via thread deformation (metal-to-metal)
• Connection: Female BSPT x Female BSPT
• Bend Angle: 90°
• Seal Type: Thread sealant (e.g., PTFE tape or liquid thread sealant) is typically required
• Material: Usually carbon steel (zinc-plated), stainless steel, or brass
• Pressure Rating: Up to 6,000 PSI depending on size and material
• Sizes Available: Commonly from 1/8" to 1-1/2"

Applications

• Hydraulic systems
• Pneumatic systems
• Fuel and oil lines
• Industrial machinery
