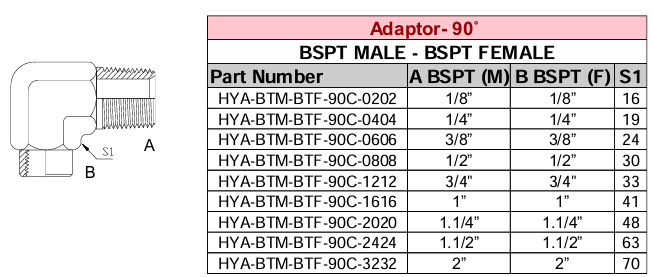

Adaptor - 90° - BSPT MALE x BSPT FEMALE

Adaptor - 90° - BSPT MALE x BSPT FEMALE

$19.53 AUD
$19.53 AUD
Sale Sold out
Shipping calculated at checkout.

A 90° BSPT Male x BSPT Female adaptor is a hydraulic fitting used to connect a tapered male BSPT thread to a tapered female BSPT thread at a right angle. This configuration is commonly used in high-pressure hydraulic systems where space constraints require a 90° turn.

Technical Specifications

  • Thread Type: BSPT (British Standard Pipe Tapered)
    • Male End: Tapered external thread
    • Female End: Tapered internal thread
  • Seal Type: Metal-to-metal seal using thread deformation
  • Bend Angle: 90°
  • Material: Typically carbon steel (zinc-plated), stainless steel, or brass
  • Common Sizes: 1/8", 1/4", 3/8", 1/2", 3/4", 1", etc.
  • Pressure Rating: Up to 6,000 PSI depending on size and material
  • Use Case: Ideal for redirecting flow in tight spaces or corners in hydraulic and pneumatic systems

Product features

Materials and care

Merchandising tips

View full details
Variant Variant total Quantity Price Variant total
HYA-BTM-BTF-90C-0202
HYA-BTM-BTF-90C-0202
$19.53/ea		 $0.00
$19.53/ea $0.00
HYA-BTM-BTF-90C-0404
HYA-BTM-BTF-90C-0404
$24.90/ea		 $0.00
$24.90/ea $0.00
HYA-BTM-BTF-90C-0606
HYA-BTM-BTF-90C-0606
$26.70/ea		 $0.00
$26.70/ea $0.00
HYA-BTM-BTF-90C-0808
HYA-BTM-BTF-90C-0808
$32.61/ea		 $0.00
$32.61/ea $0.00
HYA-BTM-BTF-90C-1212
HYA-BTM-BTF-90C-1212
$53.28/ea		 $0.00
$53.28/ea $0.00
HYA-BTM-BTF-90C-1616
HYA-BTM-BTF-90C-1616
$102.24/ea		 $0.00
$102.24/ea $0.00
HYA-BTM-BTF-90C-2020
HYA-BTM-BTF-90C-2020
$185.88/ea		 $0.00
$185.88/ea $0.00
HYA-BTM-BTF-90C-2424
HYA-BTM-BTF-90C-2424
$333.96/ea		 $0.00
$333.96/ea $0.00
HYA-BTM-BTF-90C-3232
HYA-BTM-BTF-90C-3232
$548.85/ea		 $0.00
$548.85/ea $0.00
