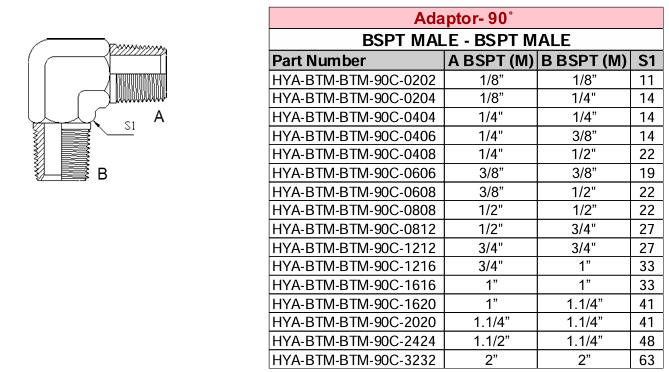

Adaptor - 90° - BSPT MALE x BSPT MALE

Adaptor - 90° - BSPT MALE x BSPT MALE

$15.72 AUD
$15.72 AUD
Sale Sold out
Shipping calculated at checkout.

A 90° BSPT Male x BSPT Male adaptor is a hydraulic fitting used to connect two British Standard Pipe Tapered (BSPT) male-threaded components at a right angle. This configuration is ideal for redirecting flow in tight spaces while maintaining a high-pressure seal.

Technical Specifications

  • Thread Type: BSPT (British Standard Pipe Tapered)
    • Tapered threads seal via thread deformation (metal-to-metal)
    • 55° thread angle
  • Connection: Male BSPT x Male BSPT
  • Bend Angle: 90°
  • Seal Type: Requires thread sealant (e.g., PTFE tape or liquid thread sealant)
  • Material: Typically, carbon steel (zinc-plated), stainless steel, or brass
  • Pressure Rating: Up to 6,000 PSI depending on size and material
  • Sizes Available: Commonly from 1/8" to 1-1/2"

Applications

  • Hydraulic and pneumatic systems
  • Fuel and oil lines
  • Industrial machinery
  • Agricultural and construction equipment

Product features

Materials and care

Merchandising tips

View full details
Variant Variant total Quantity Price Variant total
HYA-BTM-BTM-90C-0202
HYA-BTM-BTM-90C-0202
$15.72/ea		 $0.00
$15.72/ea $0.00
HYA-BTM-BTM-90C-0204
HYA-BTM-BTM-90C-0204
$19.53/ea		 $0.00
$19.53/ea $0.00
HYA-BTM-BTM-90C-0404
HYA-BTM-BTM-90C-0404
$19.05/ea		 $0.00
$19.05/ea $0.00
HYA-BTM-BTM-90C-0406
HYA-BTM-BTM-90C-0406
$22.68/ea		 $0.00
$22.68/ea $0.00
HYA-BTM-BTM-90C-0408
HYA-BTM-BTM-90C-0408
$28.92/ea		 $0.00
$28.92/ea $0.00
HYA-BTM-BTM-90C-0606
HYA-BTM-BTM-90C-0606
$21.90/ea		 $0.00
$21.90/ea $0.00
HYA-BTM-BTM-90C-0608
HYA-BTM-BTM-90C-0608
$31.86/ea		 $0.00
$31.86/ea $0.00
HYA-BTM-BTM-90C-0808
HYA-BTM-BTM-90C-0808
$22.23/ea		 $0.00
$22.23/ea $0.00
HYA-BTM-BTM-90C-0812
HYA-BTM-BTM-90C-0812
$38.07/ea		 $0.00
$38.07/ea $0.00
HYA-BTM-BTM-90C-1212
HYA-BTM-BTM-90C-1212
$33.93/ea		 $0.00
$33.93/ea $0.00
HYA-BTM-BTM-90C-1216
HYA-BTM-BTM-90C-1216
$55.08/ea		 $0.00
$55.08/ea $0.00
HYA-BTM-BTM-90C-1616
HYA-BTM-BTM-90C-1616
$54.63/ea		 $0.00
$54.63/ea $0.00
HYA-BTM-BTM-90C-1620
HYA-BTM-BTM-90C-1620
$99.18/ea		 $0.00
$99.18/ea $0.00
HYA-BTM-BTM-90C-2020
HYA-BTM-BTM-90C-2020
$105.87/ea		 $0.00
$105.87/ea $0.00
HYA-BTM-BTM-90C-2424
HYA-BTM-BTM-90C-2424
$235.53/ea		 $0.00
$235.53/ea $0.00
HYA-BTM-BTM-90C-3232
HYA-BTM-BTM-90C-3232
$359.88/ea		 $0.00
$359.88/ea $0.00
