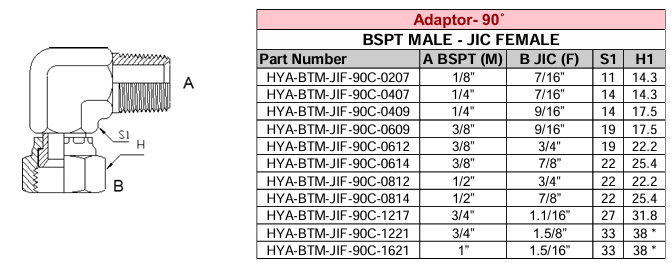

Adaptor - 90° - BSPT MALE x JIC FEMALE

A 90° BSPT Male x JIC Female adaptor is a hydraulic fitting used to connect a British Standard Pipe Tapered (BSPT) male thread to a Joint Industry Council (JIC) female thread at a right angle. This configuration is commonly used in hydraulic systems where a directional change is needed in tight spaces.

Technical Specifications

• Thread Types:
  • BSPT Male: Tapered thread (seals via thread deformation)
  • JIC Female: 37° flare seat, UNF thread (seals via metal-to-metal contact)
• Bend Angle: 90°
• Seal Type:
  • BSPT: Requires thread sealant (e.g., PTFE tape)
  • JIC: Metal-to-metal flare seal
• Material: Typically carbon steel (zinc-plated), stainless steel, or brass
• Pressure Rating: Up to 6,000 PSI depending on size and material
• Common Sizes: 1/4", 3/8", 1/2", 3/4", 1", etc.
