Adaptor - 90° - BSPT MALE x JIC MALE

Adaptor - 90° - BSPT MALE x JIC MALE

$22.77 AUD
$22.77 AUD
Sale Sold out
Shipping calculated at checkout.

A 90° BSPT Male x JIC Male adaptor is a hydraulic fitting designed to connect a British Standard Pipe Tapered (BSPT) male thread to a Joint Industry Council (JIC) male thread at a right angle. This configuration is ideal for routing hydraulic lines in compact or angled installations.

Technical Specifications

  • Thread Types:
    • BSPT Male: Tapered thread (seals via thread deformation)
    • JIC Male: 37° flare (metal-to-metal seal), UNF thread
  • Bend Angle: 90°
  • Seal Types:
    • BSPT: Requires PTFE tape or thread sealant
    • JIC: Seals via 37° flare metal-to-metal contact
  • Material Options: Carbon steel (zinc-plated), stainless steel, brass
  • Pressure Rating: Up to 6,000 PSI depending on size and material
  • Common Sizes: 1/4", 3/8", 1/2", 3/4", 1", etc.

Product features

Materials and care

Merchandising tips

View full details

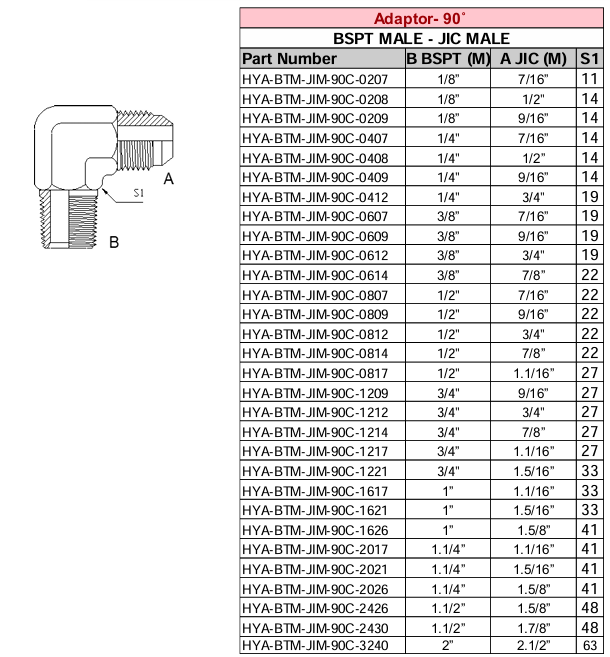

Variant Variant total Quantity Price Variant total
HYA-BTM-JIM-90C-0207
HYA-BTM-JIM-90C-0207
$22.77/ea		 $0.00
$22.77/ea $0.00
HYA-BTM-JIM-90C-0208
HYA-BTM-JIM-90C-0208
$26.70/ea		 $0.00
$26.70/ea $0.00
HYA-BTM-JIM-90C-0209
HYA-BTM-JIM-90C-0209
$26.70/ea		 $0.00
$26.70/ea $0.00
HYA-BTM-JIM-90C-0407
HYA-BTM-JIM-90C-0407
$20.52/ea		 $0.00
$20.52/ea $0.00
HYA-BTM-JIM-90C-0408
HYA-BTM-JIM-90C-0408
$21.15/ea		 $0.00
$21.15/ea $0.00
HYA-BTM-JIM-90C-0409
HYA-BTM-JIM-90C-0409
$21.21/ea		 $0.00
$21.21/ea $0.00
HYA-BTM-JIM-90C-0412
HYA-BTM-JIM-90C-0412
$24.60/ea		 $0.00
$24.60/ea $0.00
HYA-BTM-JIM-90C-0607
HYA-BTM-JIM-90C-0607
$26.10/ea		 $0.00
$26.10/ea $0.00
HYA-BTM-JIM-90C-0609
HYA-BTM-JIM-90C-0609
$22.23/ea		 $0.00
$22.23/ea $0.00
HYA-BTM-JIM-90C-0612
HYA-BTM-JIM-90C-0612
$19.53/ea		 $0.00
$19.53/ea $0.00
HYA-BTM-JIM-90C-0614
HYA-BTM-JIM-90C-0614
$29.70/ea		 $0.00
$29.70/ea $0.00
HYA-BTM-JIM-90C-0807
HYA-BTM-JIM-90C-0807
$33.93/ea		 $0.00
$33.93/ea $0.00
HYA-BTM-JIM-90C-0809
HYA-BTM-JIM-90C-0809
$30.57/ea		 $0.00
$30.57/ea $0.00
HYA-BTM-JIM-90C-0812
HYA-BTM-JIM-90C-0812
$22.23/ea		 $0.00
$22.23/ea $0.00
HYA-BTM-JIM-90C-0814
HYA-BTM-JIM-90C-0814
$24.03/ea		 $0.00
$24.03/ea $0.00
HYA-BTM-JIM-90C-0817
HYA-BTM-JIM-90C-0817
$36.48/ea		 $0.00
$36.48/ea $0.00
HYA-BTM-JIM-90C-1209
HYA-BTM-JIM-90C-1209
$48.66/ea		 $0.00
$48.66/ea $0.00
HYA-BTM-JIM-90C-1212
HYA-BTM-JIM-90C-1212
$39.30/ea		 $0.00
$39.30/ea $0.00
HYA-BTM-JIM-90C-1214
HYA-BTM-JIM-90C-1214
$42.36/ea		 $0.00
$42.36/ea $0.00
HYA-BTM-JIM-90C-1217
HYA-BTM-JIM-90C-1217
$33.12/ea		 $0.00
$33.12/ea $0.00
HYA-BTM-JIM-90C-1221
HYA-BTM-JIM-90C-1221
$54.87/ea		 $0.00
$54.87/ea $0.00
HYA-BTM-JIM-90C-1617
HYA-BTM-JIM-90C-1617
$54.87/ea		 $0.00
$54.87/ea $0.00
HYA-BTM-JIM-90C-1621
HYA-BTM-JIM-90C-1621
$43.65/ea		 $0.00
$43.65/ea $0.00
HYA-BTM-JIM-90C-1626
HYA-BTM-JIM-90C-1626
$111.57/ea		 $0.00
$111.57/ea $0.00
HYA-BTM-JIM-90C-2017
HYA-BTM-JIM-90C-2017
$179.67/ea		 $0.00
$179.67/ea $0.00
HYA-BTM-JIM-90C-2021
HYA-BTM-JIM-90C-2021
$102.24/ea		 $0.00
$102.24/ea $0.00
HYA-BTM-JIM-90C-2026
HYA-BTM-JIM-90C-2026
$113.13/ea		 $0.00
$113.13/ea $0.00
HYA-BTM-JIM-90C-2426
HYA-BTM-JIM-90C-2426
$240.75/ea		 $0.00
$240.75/ea $0.00
HYA-BTM-JIM-90C-2430
HYA-BTM-JIM-90C-2430
$230.43/ea		 $0.00
$230.43/ea $0.00
HYA-BTM-JIM-90C-3240
HYA-BTM-JIM-90C-3240
$349.50/ea		 $0.00
$349.50/ea $0.00
