Adaptor - 90° - BSPT MALE x UNO MALE

Adaptor - 90° - BSPT MALE x UNO MALE

$36.21 AUD
$36.21 AUD
Sale Sold out
Shipping calculated at checkout.

A 90° BSPT Male x UNO Male adaptor is a hydraulic fitting used to connect a British Standard Pipe Tapered (BSPT) male thread to a Unified National O-ring (UNO/ORB) male thread at a right angle. This configuration is ideal for systems requiring a directional change while interfacing between British and American thread standards.

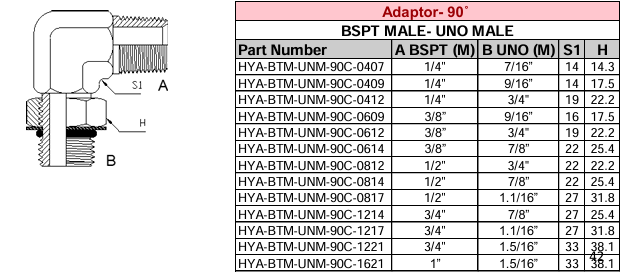

Technical Specifications

  • Thread Types:
    • BSPT Male: Tapered thread (seals via thread deformation)
    • UNO Male (ORB): Straight thread with O-ring for sealing in a port (SAE J1926)
  • Bend Angle: 90°
  • Seal Types:
    • BSPT: Requires PTFE tape or thread sealant
    • UNO: Seals via elastomeric O-ring in a machined port
  • Material Options: Carbon steel (zinc-plated), stainless steel
  • Pressure Rating: Up to 6,000 PSI depending on size and material
  • Common Sizes: 1/4", 3/8", 1/2", 3/4", 1", etc.

Product features

Materials and care

Merchandising tips

View full details
Variant Variant total Quantity Price Variant total
HYA-BTM-UNM-90C-0407
HYA-BTM-UNM-90C-0407
$36.21/ea		 $0.00
$36.21/ea $0.00
HYA-BTM-UNM-90C-0409
HYA-BTM-UNM-90C-0409
$39.36/ea		 $0.00
$39.36/ea $0.00
HYA-BTM-UNM-90C-0412
HYA-BTM-UNM-90C-0412
$46.86/ea		 $0.00
$46.86/ea $0.00
HYA-BTM-UNM-90C-0609
HYA-BTM-UNM-90C-0609
$43.50/ea		 $0.00
$43.50/ea $0.00
HYA-BTM-UNM-90C-0612
HYA-BTM-UNM-90C-0612
$41.16/ea		 $0.00
$41.16/ea $0.00
HYA-BTM-UNM-90C-0614
HYA-BTM-UNM-90C-0614
$53.85/ea		 $0.00
$53.85/ea $0.00
HYA-BTM-UNM-90C-0812
HYA-BTM-UNM-90C-0812
$45.30/ea		 $0.00
$45.30/ea $0.00
HYA-BTM-UNM-90C-0814
HYA-BTM-UNM-90C-0814
$51.27/ea		 $0.00
$51.27/ea $0.00
HYA-BTM-UNM-90C-0817
HYA-BTM-UNM-90C-0817
$72.48/ea		 $0.00
$72.48/ea $0.00
HYA-BTM-UNM-90C-1214
HYA-BTM-UNM-90C-1214
$72.48/ea		 $0.00
$72.48/ea $0.00
HYA-BTM-UNM-90C-1217
HYA-BTM-UNM-90C-1217
$67.32/ea		 $0.00
$67.32/ea $0.00
HYA-BTM-UNM-90C-1221
HYA-BTM-UNM-90C-1221
$57.42/ea		 $0.00
$57.42/ea $0.00
HYA-BTM-UNM-90C-1617
HYA-BTM-UNM-90C-1617
$83.22/ea		 $0.00
$83.22/ea $0.00
HYA-BTM-UNM-90C-1621
HYA-BTM-UNM-90C-1621
$150.15/ea		 $0.00
$150.15/ea $0.00
