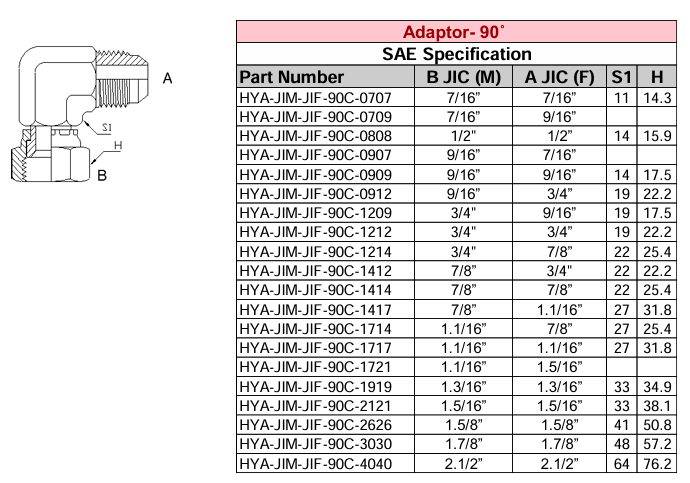

Adaptor - 90° SHORT - SAE Specification - JIC MALE x JIC FEMALE

Adaptor - 90° SHORT - SAE Specification - JIC MALE x JIC FEMALE

$21.90 AUD
$21.90 AUD
Sale Sold out
Shipping calculated at checkout.

A 90° SAE JIC Male x JIC Female adaptor is a hydraulic fitting used to connect a JIC male-threaded component to a JIC female-threaded component at a right angle. This configuration is ideal for routing hydraulic lines in compact or angled installations.

Technical Specifications

  • Standard: SAE J514 / ISO 8434-2
  • Thread Type: UNF (Unified National Fine)
  • Flare Angle: 37° (JIC standard)
  • Connection:
    • Male End: JIC 37° flare
    • Female End: JIC 37° flare swivel
  • Bend Angle: 90°
  • Seal Type: Metal-to-metal via 37° flare
  • Material Options: Carbon steel (zinc-plated), stainless steel
  • Pressure Rating: Up to 5,000 PSI depending on size and material
  • Common Sizes:
    • JIC 4 (7/16"-20)
    • JIC 6 (9/16"-18)
    • JIC 8 (3/4"-16)
    • JIC 10 (7/8"-14)
    • JIC 12 (1-1/16"-12)
    • JIC 16 (1-5/16"-12)

Product features

Materials and care

Merchandising tips

View full details
Variant Variant total Quantity Price Variant total
HYA-JIM-JIF-90C-0707
HYA-JIM-JIF-90C-0707
$21.90/ea		 $0.00
$21.90/ea $0.00
HYA-JIM-JIF-90C-0709
HYA-JIM-JIF-90C-0709
$27.18/ea		 $0.00
$27.18/ea $0.00
HYA-JIM-JIF-90C-0808
HYA-JIM-JIF-90C-0808
$26.43/ea		 $0.00
$26.43/ea $0.00
HYA-JIM-JIF-90C-0907
HYA-JIM-JIF-90C-0907
$26.70/ea		 $0.00
$26.70/ea $0.00
HYA-JIM-JIF-90C-0909
HYA-JIM-JIF-90C-0909
$24.75/ea		 $0.00
$24.75/ea $0.00
HYA-JIM-JIF-90C-0912
HYA-JIM-JIF-90C-0912
$33.15/ea		 $0.00
$33.15/ea $0.00
HYA-JIM-JIF-90C-1209
HYA-JIM-JIF-90C-1209
$33.93/ea		 $0.00
$33.93/ea $0.00
HYA-JIM-JIF-90C-1212
HYA-JIM-JIF-90C-1212
$30.33/ea		 $0.00
$30.33/ea $0.00
HYA-JIM-JIF-90C-1214
HYA-JIM-JIF-90C-1214
$40.11/ea		 $0.00
$40.11/ea $0.00
HYA-JIM-JIF-90C-1412
HYA-JIM-JIF-90C-1412
$42.69/ea		 $0.00
$42.69/ea $0.00
HYA-JIM-JIF-90C-1414
HYA-JIM-JIF-90C-1414
$36.48/ea		 $0.00
$36.48/ea $0.00
HYA-JIM-JIF-90C-1417
HYA-JIM-JIF-90C-1417
$48.96/ea		 $0.00
$48.96/ea $0.00
HYA-JIM-JIF-90C-1714
HYA-JIM-JIF-90C-1714
$52.32/ea		 $0.00
$52.32/ea $0.00
HYA-JIM-JIF-90C-1717
HYA-JIM-JIF-90C-1717
$45.60/ea		 $0.00
$45.60/ea $0.00
HYA-JIM-JIF-90C-1721
HYA-JIM-JIF-90C-1721
$62.13/ea		 $0.00
$62.13/ea $0.00
HYA-JIM-JIF-90C-1919
HYA-JIM-JIF-90C-1919
$72.96/ea		 $0.00
$72.96/ea $0.00
HYA-JIM-JIF-90C-2121
HYA-JIM-JIF-90C-2121
$59.31/ea		 $0.00
$59.31/ea $0.00
HYA-JIM-JIF-90C-2626
HYA-JIM-JIF-90C-2626
$163.11/ea		 $0.00
$163.11/ea $0.00
HYA-JIM-JIF-90C-3030
HYA-JIM-JIF-90C-3030
$289.95/ea		 $0.00
$289.95/ea $0.00
HYA-JIM-JIF-90C-4040
HYA-JIM-JIF-90C-4040
$603.24/ea		 $0.00
$603.24/ea $0.00
