Adaptor - 90° LONG - SAE Specification - JIC MALE x JIC FEMALE

A 90° SAE JIC Male x JIC Female adaptor is a hydraulic fitting used to connect a JIC male-threaded component to a JIC female-threaded component at a right angle. This configuration is ideal for routing hydraulic lines in compact or angled installations.

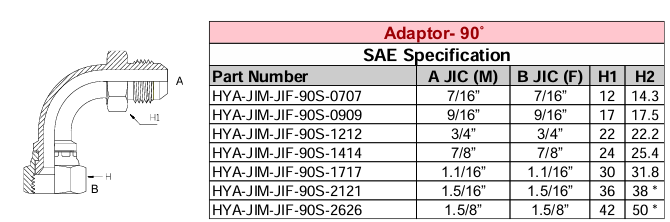

Technical Specifications

• Standard: SAE J514 / ISO 8434-2
• Thread Type: UNF (Unified National Fine)
• Flare Angle: 37° (JIC standard)
• Connection:
  • Male End: JIC 37° flare
  • Female End: JIC 37° flare swivel
• Bend Angle: 90°
• Seal Type: Metal-to-metal via 37° flare
• Material Options: Carbon steel (zinc-plated), stainless steel
• Pressure Rating: Up to 5,000 PSI depending on size and material
• Common Sizes:
  • JIC 4 (7/16"-20)
  • JIC 6 (9/16"-18)
  • JIC 8 (3/4"-16)
  • JIC 10 (7/8"-14)
  • JIC 12 (1-1/16"-12)
  • JIC 16 (1-5/16"-12)
