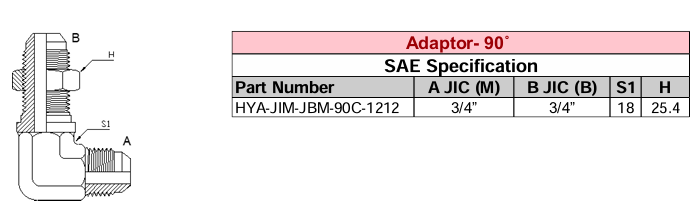

Adaptor - 90° - SAE Specification - JIC MALE x JIC Bulkhead MALE

A 90° SAE JIC Male x JIC Male adaptor is a hydraulic fitting designed to connect two JIC (Joint Industry Council) male-threaded components at a right angle. This type of adaptor is commonly used in high-pressure hydraulic systems where space constraints require a sharp directional change.

Technical Specifications

• Standard: SAE J514
• Thread Type: UNF (Unified National Fine)
• Flare Angle: 37° (JIC standard)
• Connection: Male JIC x Male JIC
• Bend Angle: 90°
• Seal Type: Metal-to-metal via 37° flare
• Material Options: Carbon steel (zinc-plated), stainless steel
• Pressure Rating: Typically up to 5,000 PSI depending on size and material
• Common Sizes:
  • JIC 4 (7/16"-20)
  • JIC 6 (9/16"-18)
  • JIC 8 (3/4"-16)
  • JIC 10 (7/8"-14)
  • JIC 12 (1-1/16"-12)
  • JIC 16 (1-5/16"-12)
