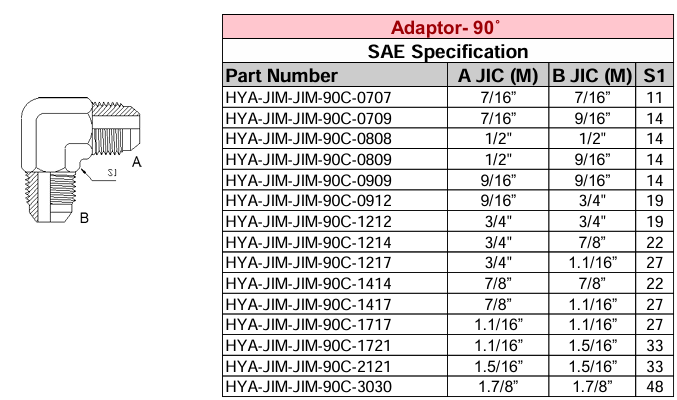

Adaptor - 90° - SAE Specification - JIC MALE x JIC MALE

A 90° adaptor with JIC Male x JIC Male ends built to SAE specifications is a hydraulic fitting used to connect two hoses or components at a right angle, where both ends have JIC (Joint Industry Council) 37° flare male threads. These fittings are commonly used in high-pressure applications such as hydraulic systems in agriculture, construction, and industrial machinery.

Key Features:

• Connection Type: JIC Male x JIC Male
• Angle: 90 degrees (elbow fitting)
• Standard: SAE J514 (which governs JIC fittings)
• Material: Typically steel (zinc-plated), stainless steel, or brass
• Thread Type: UNF (Unified National Fine) threads with a 37° flare
• Applications: Hydraulic lines, fuel delivery, and fluid transfer systems

Example Product:

One example is a 90° elbow hydraulic adapter with:

• Thread Size: e.g., 7/8"-14 UNF (for -10 JIC)
• Working Pressure: Up to 3500 PSI (varies by size and material)
• SAE Reference: SAE J514 or SAE 070120
