Adaptor - 90° SAE Specification - ORFS MALE x ORFS FEMALE

$0.00 AUD

Sale Sold out

Shipping calculated at checkout.

Product Description

A 90° ORFS Male x ORFS Female adaptor is a right-angle hydraulic fitting designed for high-pressure, leak-free connections using O-Ring Face Seal (ORFS) technology. It conforms to SAE J1453 standards.

ORFS Male: Straight thread with a machined groove and O-ring on the face
ORFS Female: Flat face that mates with the male O-ring for a leak-proof seal
Angle: 90° elbow for directional changes in tight hydraulic layouts

Technical Specifications

Standard: SAE J1453
Material: Carbon steel (zinc-plated), stainless steel, or brass
Seal Type: Buna-N or Viton O-ring (compressed between flat faces)
Thread Type: UN/UNF straight thread
Pressure Rating: Up to 6000 PSI (varies by size and material)
Applications: High-pressure hydraulic systems in agriculture, mining, construction, and industrial machinery

Product features

Materials and care

Merchandising tips

View full details

Your cart

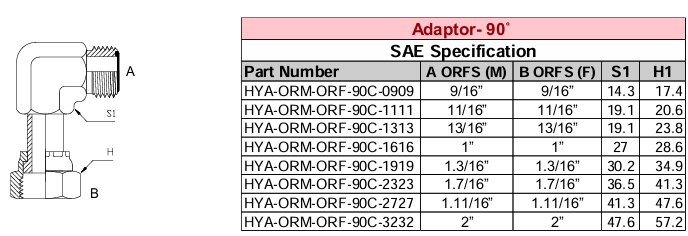

Variant	Variant total	Quantity	Price	Variant total
HYA-ORM-ORF-90C-0909	HYA-ORM-ORF-90C-0909 $0.00/ea	$0.00	Quantity Sold out	$0.00/ea	$0.00

HYA-ORM-ORF-90C-1111	HYA-ORM-ORF-90C-1111 $0.00/ea	$0.00	Quantity Sold out	$0.00/ea	$0.00

HYA-ORM-ORF-90C-1313	HYA-ORM-ORF-90C-1313 $0.00/ea	$0.00	Quantity Sold out	$0.00/ea	$0.00

HYA-ORM-ORF-90C-1616	HYA-ORM-ORF-90C-1616 $0.00/ea	$0.00	Quantity Sold out	$0.00/ea	$0.00

HYA-ORM-ORF-90C-1919	HYA-ORM-ORF-90C-1919 $0.00/ea	$0.00	Quantity Sold out	$0.00/ea	$0.00

HYA-ORM-ORF-90C-2323	HYA-ORM-ORF-90C-2323 $0.00/ea	$0.00	Quantity Sold out	$0.00/ea	$0.00

HYA-ORM-ORF-90C-2727	HYA-ORM-ORF-90C-2727 $0.00/ea	$0.00	Quantity Sold out	$0.00/ea	$0.00

HYA-ORM-ORF-90C-3232	HYA-ORM-ORF-90C-3232 $0.00/ea	$0.00	Quantity Sold out	$0.00/ea	$0.00
