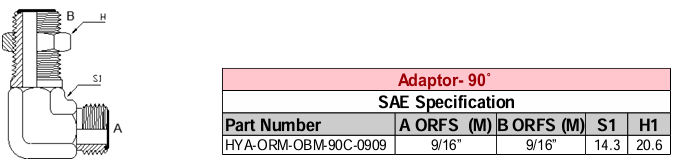

Adaptor - 90° SAE Specification - ORFS MALE x ORFS MALE

Product Description

A 90° ORFS Male x ORFS Male adaptor is a right-angle hydraulic fitting designed for high-pressure, leak-free connections. It uses O-Ring Face Seal (ORFS) technology, which is part of the SAE J1453 standard.

• ORFS (O-Ring Face Seal): Uses a flat face with an embedded O-ring to create a secure, leak-proof seal when mated with a female ORFS fitting.
• Connection Type: Both ends are ORFS Male, typically with straight threads and an O-ring in the face.
• Angle: 90° elbow for directional changes in tight spaces.

Technical Specifications

• Standard: SAE J1453
• Material: Carbon steel (zinc-plated), stainless steel, or brass
• Seal Type: Buna-N or Viton O-ring in the face
• Thread Type: UN/UNF straight thread
• Pressure Rating: Up to 6000 PSI depending on size and material
• Applications: Hydraulic systems in agriculture, construction, mining, and industrial machinery
