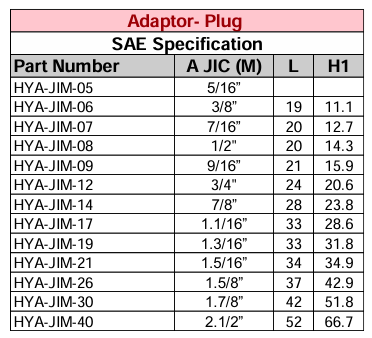

Adaptor JIC MALE - SAE Specification Plug

Adaptor JIC Male to SAE Specification Plug

• Standards: SAE J514. ISO 8434-2 (for JIC)
• Thread Types: JIC: UNF straight thread with 37° flare. SAE: Straight thread (ORB or Boss), depending on spec
• Function: Used to seal or blank off SAE female ports. Provides secure, leak-free connection in hydraulic systems
• Seal Mechanism: Metal-to-metal seal on JIC flare. May require O-ring or bonded washer on SAE side (if ORB)
• Material Options: Zinc-plated carbon steel (most common). Stainless steel. Brass (less common)
• Applications: Hydraulic systems in agriculture, mining, industrial equipment, and mobile service units. Common in OEM builds and field service kits
• Connection: JIC Male – 37° flare fitting (Joint Industry Council standard). SAE Specification Plug – typically SAE J514 compliant, used to seal SAE ports
• Temperature Range: Typically -40°C to +120°C (depending on material and seal type)
• Pressure Rating: Up to 6000 psi (varies by size and material)
