This adaptor is engineered to connect Metric Light male threads to ORFS (O-Ring Face Seal) male threads, providing a secure and leak-free transition between European-style metric fittings and American ORFS hydraulic systems.
Key Features
Thread Types:
Metric Light Male: Typically DIN 2353 standard, 24° cone seat for metal-to-metal sealing.
ORFS Male: SAE J1453 standard, flat face with embedded O-ring for elastomeric sealing.
Seal Mechanism: Combines metal-to-metal sealing on the metric side with elastomeric O-ring sealing on the ORFS side for enhanced leak resistance.
Material Options: Available in carbon steel, stainless steel, and zinc-plated steel for corrosion resistance and durability.

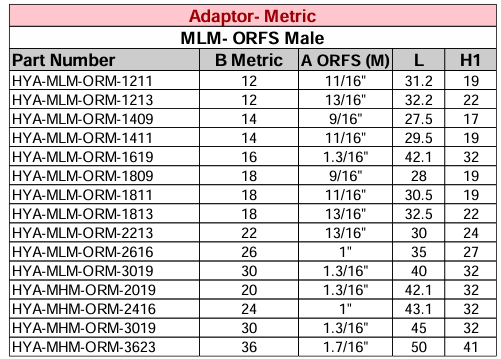

Sizes: Common combinations include:
M12x1.5 to 9/16"-18 UNF
M16x1.5 to 11/16"-16 UNF
M22x1.5 to 1"-14 UNF
M33x2 to 1-7/16"-12 UNF
Pressure Rating: Suitable for high-pressure hydraulic systems, typically up to 6000 psi depending on size and material.
Applications
Hydraulic equipment in mobile, industrial, and agricultural sectors.
Systems requiring cross-standard compatibility between metric and ORFS components.
OEM and aftermarket hydraulic assemblies.
Additional Benefits
Leak-Free Performance: ORFS face seal design minimizes fluid loss and contamination.
Versatile Compatibility: Ideal for international machinery and mixed-standard systems.
Ease of Installation: Straight and elbow configurations available for flexible routing.
