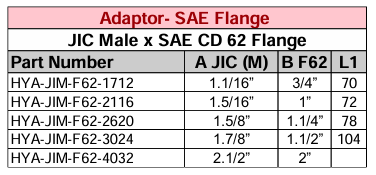

SAE Flange to JIC Male x SAE Code 62 Flange adaptor:
This type of hydraulic adapter connects a SAE Code 62 flange port to a JIC 37° male flare fitting, commonly used in high-pressure hydraulic systems. It allows for a secure and leak-resistant connection between components like pumps, valves, and hoses.
Pressure Rating:
Code 61: Up to 3,000 psi
Code 62: Up to 6,000 psi
Standard Compliance: SAE J514 (JIC) and SAE J518 (Flange)
Design: One end with Code 62 flange and O-ring groove, other end with JIC 37° male flare
Application: Heavy-duty hydraulic systems requiring robust, leak-free connection
