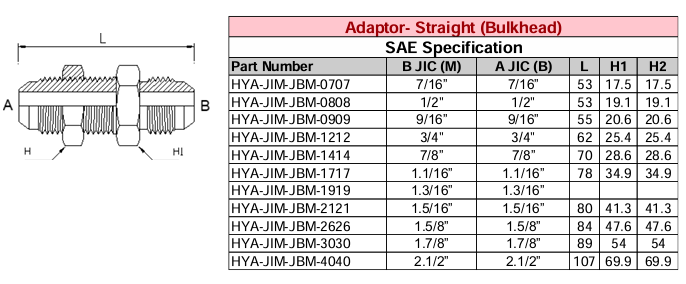

Adaptor - Straight (Bulkhead) JIC - JIC - SAE Specification

A Straight Bulkhead Adaptor (JIC x JIC) is a hydraulic fitting designed to connect two JIC (37° flare) male-threaded components through a panel or bulkhead. These fittings are built to meet SAE J514 and ISO 8434-2 standards, ensuring compatibility and high performance in demanding hydraulic systems.

• Thread Type: JIC (Joint Industry Council), 37° flare
• Standard: SAE J514 / ISO 8434-2
• Configuration:
  • Male JIC on both ends
  • Bulkhead body with locknut for panel mounting
• Seal Type: Metal-to-metal seal via 37° flare
• Material: Typically carbon steel (zinc-plated), stainless steel (AISI 316), or brass
• Pressure Rating: Up to 6,000 psi depending on size and material
• Sizes Available: From 3/16" to 2" JIC (e.g., 3/8"-24 UNF to 2 1/2"-12 UN)

Applications:

• High-pressure hydraulic systems
• Industrial and mobile equipment
• Marine and offshore installations
• Aerospace and defense systems
