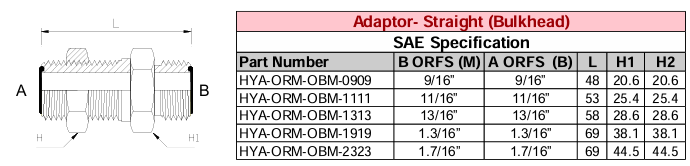

A Straight Bulkhead Adaptor (ORFS x ORFS) built to SAE J1453 specification is a high-performance hydraulic fitting designed to connect two O-Ring Face Seal (ORFS) components through a panel or bulkhead, ensuring a secure, leak-free connection in high-pressure systems.
Thread Type: ORFS (O-Ring Face Seal), conforming to SAE J1453
Configuration:
Male ORFS on both ends
Bulkhead body with locknut for panel mounting
Seal Type:
Elastomeric O-ring (typically Buna-N or Viton) seated in a machined groove on the face of the fitting
Provides a metal-to-elastomer seal for superior leak resistance
Material: Carbon steel (zinc-plated), stainless steel (AISI 316), or brass
Pressure Rating: Up to 630 bar (9,100 psi) depending on size and materialÂ
