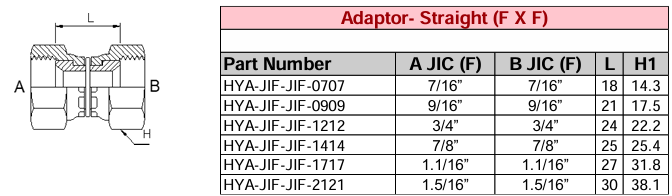

A Straight Adaptor (F x F) JIC - JIC is a hydraulic fitting designed to connect two female JIC (Joint Industry Council) threads in a straight, inline configuration. These fittings are widely used in high-pressure fluid systems and conform to the SAE J514 standard.
Key Specifications:
Thread Type: JIC 37° flare (SAE J514)
Connection: Female x Female (F x F)
Seal Type: Metal-to-metal seal via the 37° flare
Material: Typically carbon steel (zinc-plated), stainless steel, or brass
Pressure Rating:
Up to 5,000 psi for smaller sizes (e.g., -4 to -6)
Decreases with larger sizes (e.g., -24 rated around 2,000 psi)
Temperature Range: -65°F to +400°F (-54°C to +204°C)
Standard Compliance: SAE J514
Applications:
Hydraulic systems in mobile and industrial equipment
