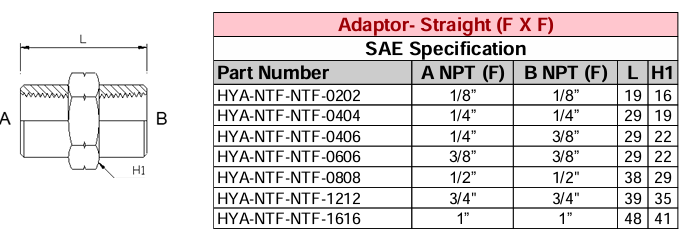

Adaptor - Straight (F X F) NPT - NPT - SAE Specification

Adaptor - Straight (F X F) NPT - NPT - SAE Specification

$8.43 AUD
$8.43 AUD
Sale Sold out
Shipping calculated at checkout.

A Straight Adaptor (F x F) NPT - NPT under SAE specification is a fitting used to connect two National Pipe Tapered (NPT) female threads in a straight, inline configuration. These are commonly used in hydraulic, pneumatic, and industrial fluid systems.

SAE Specification Overview:

  • Thread Type: NPT (National Pipe Tapered), conforming to ASME B1.20.1
  • Connection: Female x Female (F x F)
  • Seal Type: Tapered threads seal via thread deformation; typically requires PTFE tape or pipe thread sealant
  • Material: Carbon steel (zinc-plated), stainless steel, brass
  • Pressure Rating:
    • Varies by size and material
    • Typically up to 10,000 psi for small sizes in high-strength steel
  • Temperature Range: -65°F to 400°F (-54°C to 204°C)
  • Standard Compliance: While NPT is not an SAE thread, it is often used in SAE-compliant systems and fittings are manufactured to SAE J514 or SAE J476 standards for compatibility
  • Hydraulic and pneumatic systems
  • Fuel and oil lines
  • Industrial machinery
  • Water and gas piping systems

Product features

Materials and care

Merchandising tips

View full details
Variant Variant total Quantity Price Variant total
HYA-NTF-NTF-0202
HYA-NTF-NTF-0202
$8.43/ea		 $0.00
$8.43/ea $0.00
HYA-NTF-NTF-0404
HYA-NTF-NTF-0404
$5.70/ea		 $0.00
$5.70/ea $0.00
HYA-NTF-NTF-0406
HYA-NTF-NTF-0406
$6.12/ea		 $0.00
$6.12/ea $0.00
HYA-NTF-NTF-0606
HYA-NTF-NTF-0606
$10.44/ea		 $0.00
$10.44/ea $0.00
HYA-NTF-NTF-0808
HYA-NTF-NTF-0808
$11.40/ea		 $0.00
$11.40/ea $0.00
HYA-NTF-NTF-1212
HYA-NTF-NTF-1212
$15.87/ea		 $0.00
$15.87/ea $0.00
HYA-NTF-NTF-1616
HYA-NTF-NTF-1616
$62.40/ea		 $0.00
$62.40/ea $0.00
