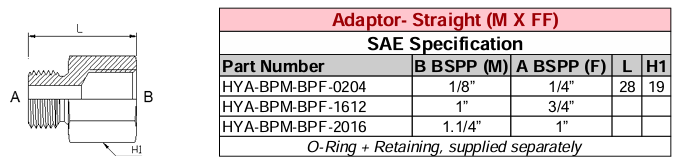

Adaptor - Straight (M X FF) BSPP - BSPP - SAE Specification

A Straight Adaptor (M x FF) BSPP - BSPP is a hydraulic fitting designed to connect a male BSPP thread to dual female BSPP threads in a straight configuration. These fittings are commonly used in high-pressure hydraulic systems and conform to international and SAE-compatible standards.

Key Specifications:

• Thread Type: BSPP (British Standard Pipe Parallel), conforming to ISO 1179-1 and ISO 228-1
• Seal Type: Typically uses a bonded seal (Dowty washer) or O-ring face seal depending on the application
• Material: Carbon steel (zinc-plated), stainless steel, or brass
• Pressure Rating: Up to 6,000 psi depending on size and material
• Standard Compliance:
  • BSPP threads: ISO 1179-1
  • SAE compatibility: Often used in systems built to SAE J514 standards

Applications:

• Hydraulic and pneumatic systems
• Industrial machinery
• Agricultural and construction equipment
• Marine and offshore systems

This type of adaptor is ideal for inline connections where a male BSPP fitting needs to interface with two female BSPP ports or hoses.
