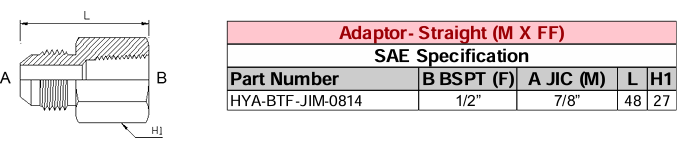

Adaptor - Straight (M X FF) BSPT - JIC - SAE Specification

A Straight Adaptor (M x FF) BSPT - JIC under SAE specification is a hydraulic fitting that connects:

• Male BSPT (British Standard Pipe Tapered) thread
• To dual Female JIC (Joint Industry Council) 37° flare threads

This configuration is used to transition from a BSPT-threaded male port to two JIC-threaded female connections in a straight line.

• Thread Types:
  • BSPT (Male): Tapered thread conforming to ISO 7-1 / BS 21
  • JIC (Female): 37° flare thread conforming to SAE J514
• Seal Types:
  • BSPT: Seals via thread deformation; requires PTFE tape or thread sealant
  • JIC: Metal-to-metal seal via the 37° flare
• Material: Typically carbon steel (zinc-plated), stainless steel, or brass
• Pressure Rating: Up to 5,000 psi depending on size and material
• Standard Compliance:
  • BSPT: ISO 7-1
  • JIC: SAE J514

Applications:

• Hydraulic and pneumatic systems
• Agricultural and construction equipment
• Industrial machinery
• Marine and offshore systems

This adaptor is ideal for systems where a BSPT-threaded male port needs to split or connect to two JIC hoses or components.
