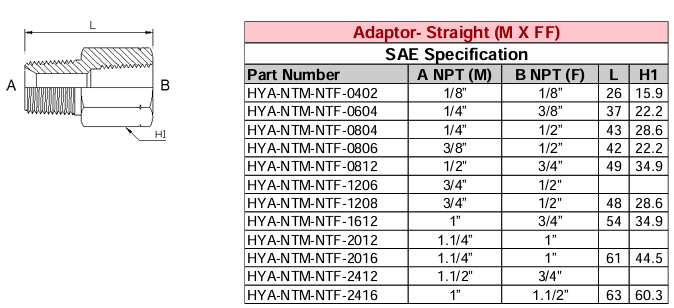

Adaptor - Straight (M X FF) NPT - NPT - SAE Specification

A Straight Adaptor (M x FF) NPT - NPT under SAE-compatible specifications is a hydraulic fitting designed to connect a male NPT (National Pipe Tapered) thread to dual female NPT threads in a straight configuration. These are commonly used in fluid and gas systems where a secure, pressure-tight seal is required.

• Thread Type: NPT (National Pipe Tapered), conforming to ASME B1.20.1
• Seal Type: Tapered threads seal via thread deformation; requires PTFE tape or pipe thread sealant
• Material: Typically carbon steel (zinc-plated), stainless steel, or brass
• Pressure Rating: Up to 10,000 psi depending on size and material
• Temperature Range: -65°F to 400°F (-54°C to 204°C)
• SAE Compatibility: While NPT is not an SAE thread, it is included in SAE J514 for use in hydraulic systems

• Hydraulic and pneumatic systems
• Fuel and oil lines
• Industrial machinery
• Water and gas piping systems

This adaptor is ideal for inline connections where a male NPT fitting needs to interface with two female NPT ports or hoses.
