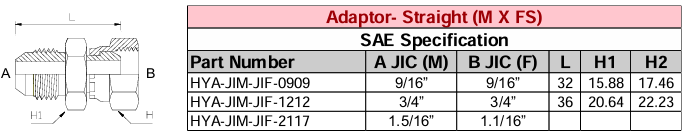

Adaptor - Straight (M X FS) JIC - JIC - SAE Specification

$18.45 AUD

Sale Sold out

Shipping calculated at checkout.

A Straight Adaptor (M x FS) JIC - JIC - SAE Specification refers to a hydraulic fitting that connects a male JIC thread to a female swivel JIC thread, both conforming to SAE J514 standards.

Standard: SAE J514 (also aligns with ISO 8434-2)
Thread Type: 37° flare (JIC - Joint Industry Council)
Seal Type: Metal-to-metal seal via the 37° flare; no additional sealant like Teflon tape is required
Material Options: Carbon steel, stainless steel, brass
Pressure Rating: Up to 5,000 psi depending on size and material
Temperature Range: Typically -65°F to 400°F (-54°C to 204°C)

Product features

Materials and care

Merchandising tips

View full details

Your cart
Variant	Variant total	Quantity	Price	Variant total
HYA-JIM-JIF-0909	HYA-JIM-JIF-0909 $18.45/ea	$0.00	Quantity	$18.45/ea	$0.00

HYA-JIM-JIF-1212	HYA-JIM-JIF-1212 $16.38/ea	$0.00	Quantity	$16.38/ea	$0.00

HYA-JIM-JIF-1721	HYA-JIM-JIF-1721 $62.79/ea	$0.00	Quantity	$62.79/ea	$0.00

HYA-JIM-JIF-2117	HYA-JIM-JIF-2117 $56.31/ea	$0.00	Quantity	$56.31/ea	$0.00
