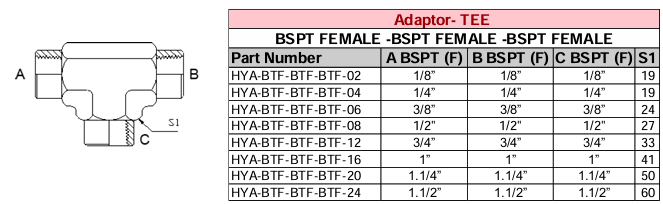

Adaptor - TEE - BSPT (F) x BSPT (F) x BSPT (F)

A TEE adaptor with BSPT (British Standard Pipe Taper) Female x Female x Female configuration is a hydraulic fitting used to connect three pipes or hoses with tapered threads. Here's a detailed overview:

Specification Summary

• Type: TEE Adaptor (Three-way)
• Thread Type: BSPT (British Standard Pipe Taper)
  • Tapered thread (not parallel)
  • Thread angle: 55° Whitworth
  • Sealing is achieved by thread interference (not an O-ring)
• Connection: All three ports are Female BSPT
• Material Options:
  • Carbon Steel (most common for hydraulic use)
  • 316 Stainless Steel (for corrosion resistance)
• Common Sizes:
  • 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
• Pressure Ratings:
  • Varies by size and material, typically up to 6000 psi for steel fittings.
