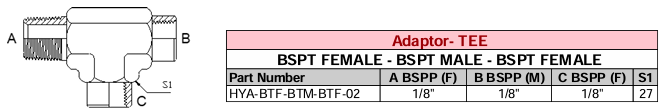

Adaptor - TEE - BSPT (F) x BSPT (M) x BSPT (F)

The TEE adaptor with BSPT Female x BSPT Male x BSPT Female—commonly referred to as a BSPT Run Tee—is a hydraulic fitting used to connect three pipes in a T-configuration, where the male branch typically connects into a female-threaded port.

Specification Overview

• Type: Run Tee Adaptor
• Thread Standard: BSPT (British Standard Pipe Tapered)
• Configuration:
  • A (Run): BSPT Female
  • B (Branch): BSPT Male
  • C (Run): BSPT Female
• Thread Angle: 55° Whitworth
• Sealing Method: Thread interference (no O-ring)
• Material: Usually carbon steel or 316 stainless steel
• Common Sizes:
  • 1/8", 1/4", 3/8", 1/2", 3/4", 1"
• Pressure Rating: Typically up to 6000 psi, depending on size and material.
