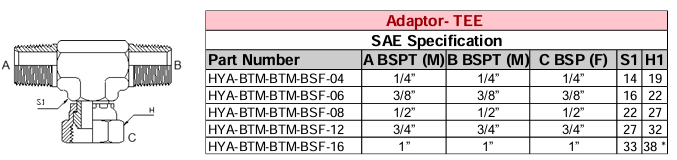

The TEE adaptor with BSPT (Male) x BSPT (Male) x BSP (Female) configuration is a specialized hydraulic fitting used in systems where two tapered male connections are needed on the run, and a parallel female connection is required on the branch. This configuration is often used in pressure gauge installations or branching off a main line.
Specification Overview
Type: SAE TEE Adaptor
Configuration:
Run (A & C): BSPT (British Standard Pipe Taper) Male
Branch (B): BSP (British Standard Pipe Parallel) Female
Thread Standards:
BSPT Male: Tapered thread, seals via thread interference
BSP Female: Parallel thread, typically sealed with a bonded washer or O-ring face
Material Options:
Carbon Steel (most common for hydraulic applications)
316 Stainless Steel (for corrosion resistance)
Common Sizes:
1/8", 1/4", 3/8", 1/2", 3/4", 1"
Pressure Rating:
Up to 6000 psi for steel fittings (varies by size and manufacturer)
