QUICK COUPLERS & PLUGS - TECHNICAL DATA

QUICK COUPLERS & PLUGS - TECHNICAL DATA

$25.92 AUD
$25.92 AUD
Sale Sold out
Shipping calculated at checkout.

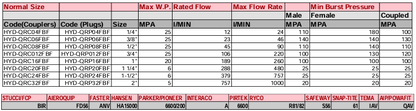

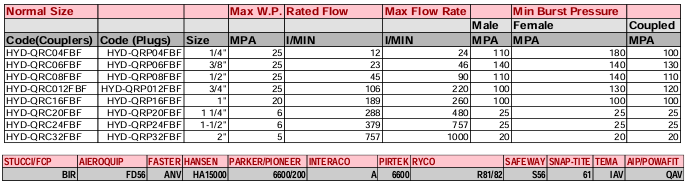

Quick Couplers & Plugs – Technical Data

  • Body: Carbon steel (zinc-plated), stainless steel, or brass
  • Seals: Buna-N (NBR), Viton (FKM), or EPDM
  • Locking Mechanism: Ball-lock or sleeve-lock
  • Surface Treatment: Chrome-III zinc plating with top coat for corrosion resistance
  • Push-to-connect or push-pull operation
  • Flat face designs (ISO 16028) minimize fluid loss and air inclusion
  • Dust caps recommended for contamination control
  • Temperature Range: -40°C to +120°C (depending on seal material)

Product features

Materials and care

Merchandising tips

View full details
Variant Variant total Quantity Price Variant total
HYD-QRC04FBF
HYD-QRC04FBF
$25.92/ea		 $0.00
$25.92/ea $0.00
HYD-QRP04FBF
HYD-QRP04FBF
$13.56/ea		 $0.00
$13.56/ea $0.00
HYD-QRC06FBF
HYD-QRC06FBF
$31.50/ea		 $0.00
$31.50/ea $0.00
HYD-QRP06FBF
HYD-QRP06FBF
$14.55/ea		 $0.00
$14.55/ea $0.00
HYD-QRC08FBF
HYD-QRC08FBF
$32.31/ea		 $0.00
$32.31/ea $0.00
HYD-QRP08FBF
HYD-QRP08FBF
$15.36/ea		 $0.00
$15.36/ea $0.00
HYD-QRC12FBF
HYD-QRC12FBF
$58.86/ea		 $0.00
$58.86/ea $0.00
HYD-QRP12FBF
HYD-QRP12FBF
$30.12/ea		 $0.00
$30.12/ea $0.00
HYD-QRC16FBF
HYD-QRC16FBF
$114.66/ea		 $0.00
$114.66/ea $0.00
HYD-QRP16FBF
HYD-QRP16FBF
$48.27/ea		 $0.00
$48.27/ea $0.00
HYD-QRC20FBF
HYD-QRC20FBF
$175.26/ea		 $0.00
$175.26/ea $0.00
HYD-QRP20FBF
HYD-QRP20FBF
$73.23/ea		 $0.00
$73.23/ea $0.00
HYD-QRC24FBF
HYD-QRC24FBF
$284.76/ea		 $0.00
$284.76/ea $0.00
HYD-QRP24FBF
HYD-QRP24FBF
$126.51/ea		 $0.00
$126.51/ea $0.00
HYD-QRC32FBF
HYD-QRC32FBF
$539.37/ea		 $0.00
$539.37/ea $0.00
HYD-QRP32FBF
HYD-QRP32FBF
$207.75/ea		 $0.00
$207.75/ea $0.00
