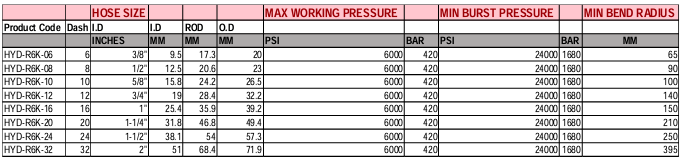

RESILIENT 6-WIRE SPIRAL CONSTRUCTION HIGH PRESSURE HIGH IMPULSE The Sunflex Total Core R6K spiral hose provides 6000psi constant working pressure in sizes -6 to -32 designed for harsh Australian conditions where high pressure high impulse applications are required. Half bend radius of regular R15, making it easy for installation this hose exceeds ISO 18752-CC uses M series fittings • ½” Iso 18752-Cc Half Bend Radius • 6,000 PSI Constant Working Pressure • 4 and 6 Wire Spiral Construction • 1,000000 Impulse Cycles • Code Match Hose and Fitting System • Super Tough Wrapped Cover Finish • The Most Flexible Hose on the Market • 4:1 Safety Factor
APPLICATION: PETROLEUM BASED HYDRAULIC FLUIDS AND OILS FITTINGS: M SERIES INNER TUBE: BLACK, OIL RESISTANT SYNTHETIC RUBBER TEMP RANGE: -40°C - 121°C REINFORCEMENT: FOUR AND SIX WIRE HIGH TENSILE STEEL WIRESPIRAL LAYERS IMPULSE CYCLES: 1,000,000 COVER: WRAPPED ABRASION, OZONE, OIL AND WEATHER RESISTANT SYNTHETIC RUBBER BRANDING: SUNFLEX HULK ISOBARIC 6K WP 420 BAR BP 1680 BAR ISO18752-CC MSHA IC 304
