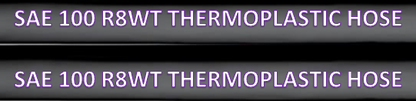

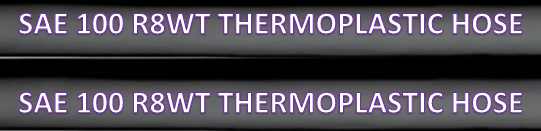

SAE 100 R8WT (TWIN THERMOPLASTIC HOSE) The Sunflex R8WT Twin Thermoplastic Hose is an all-purpose medium pressure hose meeting the same standards of SAE 100R8, suitable for many hydraulic and pneumatic systems. Compatible with hydraulic oils, grease, fuel oils, mineral oils and most phosphate esters. For water and water-based hydraulic fluids, temperature is limited to 70°C. This hose is also suitable for many industrial gasses: EG: Heliox (max 2.5% O2). Argon, Nitrogen, Carbon Dioxide, Helium and Air. • 4:1 Safety Factor • Excellent flexibility • Flex fatigue resistant throughout temperature range • Slim-lightweight technology • X Series fitting system
APPLICATION: GENERAL, MECHANICAL, CONSTRUCTION AND GAS APPLICATION AND MACHINE TOOLS FITTINGS: X SERIES SHELLS INNER TUBE: BLACK, OIL RESISTANT CONSISTS OF TWIN UNPLASTICISED POLYESTER TUBES TEMP RANGE: -40°C - 100°C REINFORCEMENT: SINGLE BRAID POLYESTER FIBRE COVER: BLACK POLYURETHANE OUTER NON-PRICKED COVER BRANDING: SUNFLEX THERMPLASTIC HOSE SAE 100 R8WT
